  • Material introduction

    Features: The surface is relatively smooth, white, and can be painted. Toughness: The material is brittle, suitable for ordinary assembly.

    Application areas: automotive, consumer electronics, electromechanical, artwork

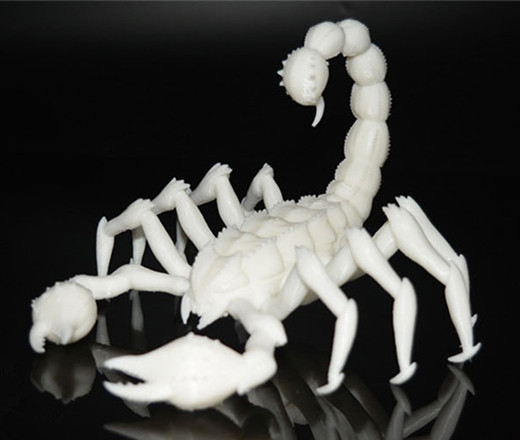

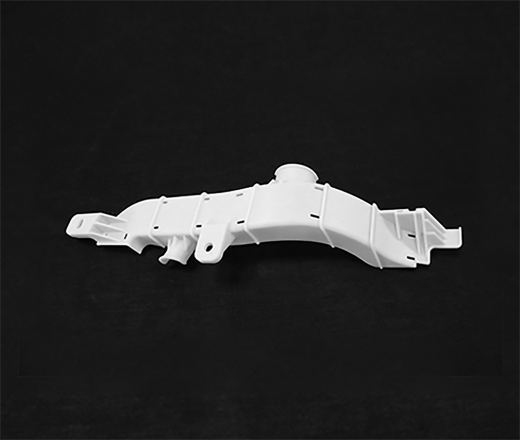

    Material name: photosensitive resin-9400



    Color: white,



    temperature resistance: 46℃



    Accuracy: ±0.15/100mm Minimum wall thickness: 0.5mm

    Material performance

    Heat deflection temperature 46° Density 1.13 Stretching rate (stretching) 3%
    Stretching rate (breaking) 6%-9% Tensile strength (tensile) 27-31MPa Tensile strength (break) 33-40MPa
    Water absorption rate 0.4% Hardness 83 Poisson's ratio 0.41
    Flexural strength 69-74MPa Impact strength 23-29J/㎡ Flexural modulus 2178-2222MPa



  • Material introduction

    Features: The surface is relatively smooth and transparent, with a slight layer pattern, and the transparency of part of the internal cavity structure is slightly poor. Toughness: The material is brittle, suitable for ordinary assembly.

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Material performance

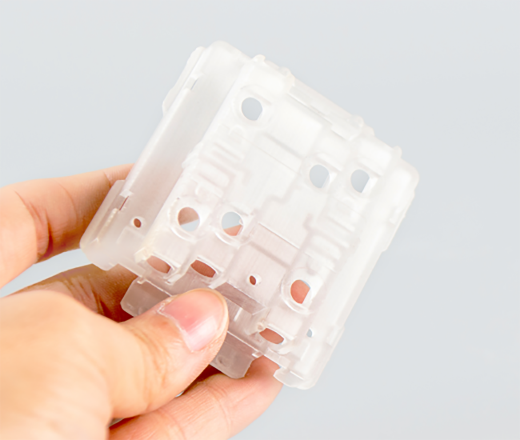

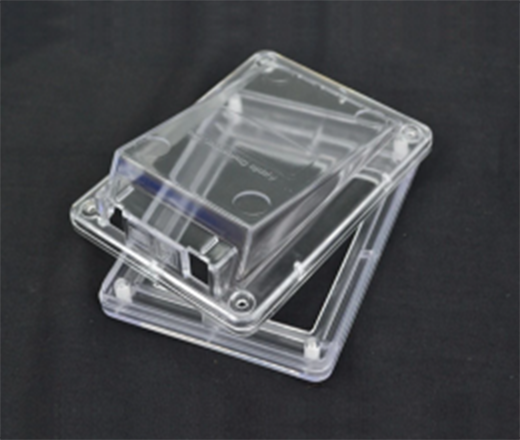

    Material name: Transparent resin



    Color: transparent,



    temperature resistance: 61℃



    Accuracy: ±0.3/100mm Minimum wall thickness: 0.5mm

    Heat deflection temperature 61° Density 1.13 Stretching rate (stretching) 3%
    Stretching rate (breaking) 10% Tensile strength (tensile) 50MPa Tensile strength (break) 50MPa
    Water absorption rate 0.35% Hardness 87 Poisson's ratio 0.41
    Flexural strength / Impact strength 25J/㎡ Flexural modulus /



  • Features: The surface is relatively smooth and light green, and can be painted. Toughness: Toughness is better than other resins.

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Material performance

    Material introduction

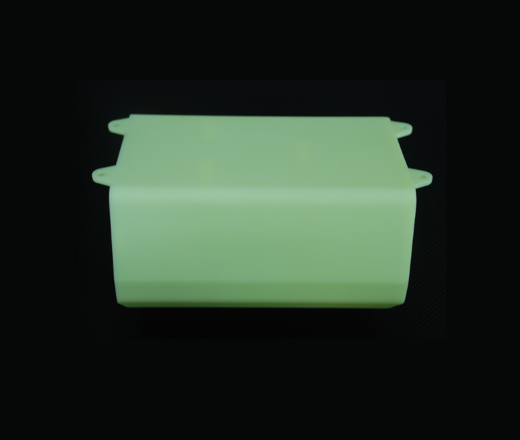

    Material name: High toughness resin 8220



    Color: Tender green,



    temperature resistance: 70℃



    Accuracy: ±0.15/100mm Minimum wall thickness: 0.5mm

    Heat deflection temperature 70° Density 1.15 Stretching rate (stretching) 3%
    Stretching rate (breaking) 16% Tensile strength (tensile) 51MPa Tensile strength (break) 2136MPa
    Water absorption rate 0.44% Hardness 86 Poisson's ratio 0.40-0.45
    Flexural strength 94MPa Impact strength 227J/㎡ Flexural modulus 2155.71MPa



  • Features: The surface is smooth and light yellow, and can be painted. Toughness: Strength and toughness are better than photosensitive resin-9400

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Material performance

    Material introduction

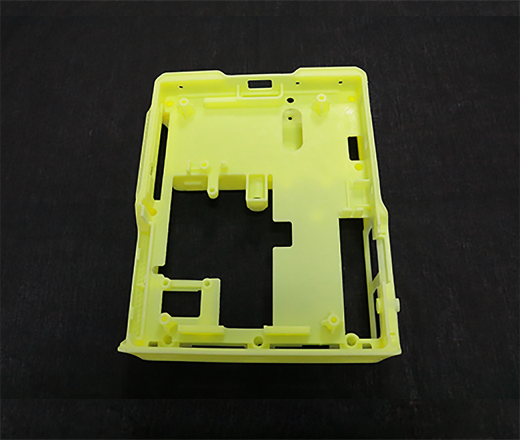

    Material name: Photosensitive resin LASTY-R



    Color: yellow



    temperature resistance: 46℃



    Accuracy: ±0.15/100mm Minimum wall thickness: 0.5mm

    Heat deflection temperature 46° Density 1.11-1.15 Stretching rate (stretching) 3%
    Stretching rate (breaking) 13-22% Tensile strength (tensile) 45-58MPa Tensile strength (break) 336MPa
    Water absorption rate 0.4% Hardness 78-90 Poisson's ratio 0.4-0.45
    Flexural strength 71-78MPa Impact strength 25-40J/㎡ Flexural modulus 2685-2775MPa



  • Material introduction

    Features: The surface is grainy and white. Toughness: Good toughness, high fracture ductility.

    Application areas: Auto parts, household appliances, electromechanical equipment.

    Material performance

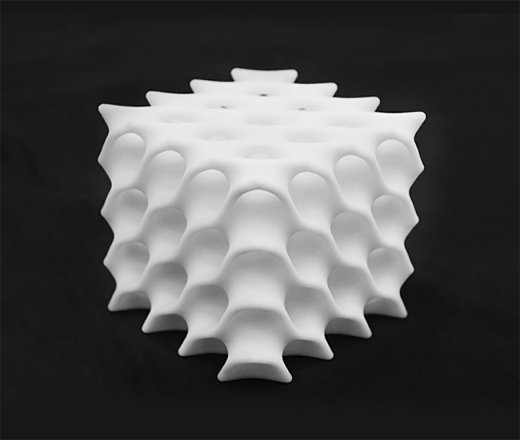

    Material name: Nylon



    Color: white,



    temperature resistance: 145℃



    Accuracy: ±0.2/100mm Minimum wall thickness: 0.6mm

    Heat deflection temperature 145° Density 1 Tensile Strength 46MPa
    Bending strength 46.3MPa Tensile modulus 51602MPa Notched impact strength 4.9KJ/㎡
    Elongation at break 3.6% Flexural modulus 1300MPa



  • Material introduction

    Features: The surface is grainy and white-gray. Toughness: The material has better strength and better mechanical properties.

    Application areas: automotive, consumer electronics, electromechanical

    Material performance

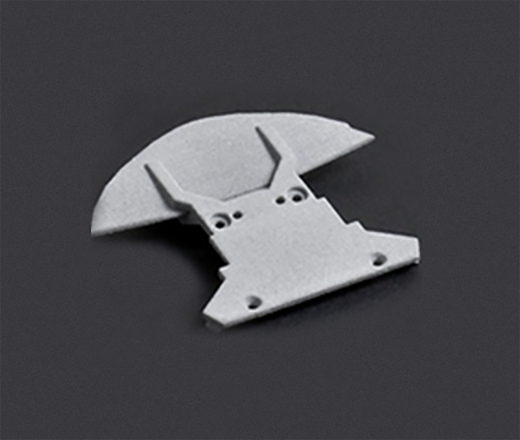

    Material name: PA+GF



    Color: off-white,



    temperature resistance: 162℃



    Accuracy: ±0.2/100mm Minimum wall thickness: 0.6mm

    Features: The surface is relatively smooth, white, and can be painted with oil spray. Toughness: The material is brittle, suitable for ordinary assembly.

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Heat deflection temperature 162° Density 1.26g/cm³ Stretching rate (stretching) 3%
    Tensile strength 44MPa Bending strength 68MPa Tensile modulus 3500-7000MPa
    Notched impact strength 4.13KJ/㎡ Elongation at break 5% Flexural modulus 2415MPa



  • Material introduction

    Features: The surface is grainy and black. Toughness: Good toughness, strength, and high fracture ductility.

    Application areas: automotive, consumer electronics, electromechanical,

    Material performance

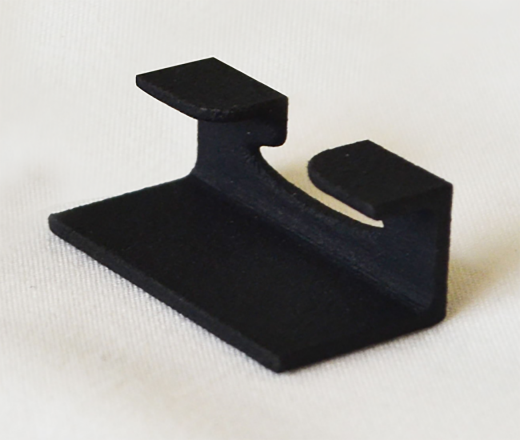

    Material name: High performance nylon



    Color: black,



    temperature resistance: 178℃



    Accuracy: ±0.2/100mm Minimum wall thickness: 0.6mm

    Heat deflection temperature 175° Stable performance refresh rate 20% Tensile strength 48MPa
    Notched impact strength 3.5KJ/㎡ Elongation at break 20% Tensile modulus 1700MPa



  • Material introduction

    Features: There are lines on the surface, and the colors are optional. Accuracy: poor. Toughness: Toughness is poor.

    Application areas:  artwork

    Material performance

    Material name: PLA



    Color: multi color,



    temperature resistance: 56℃



    Accuracy: ±0.5/100mm Minimum wall thickness: 0.8mm

    Heat deflection temperature 56° Density 1.24g/cm³ tensile strength 65MPa
    Tensile modulus 1700MPa Bending strength 97MPa Bending modulus 3600MPa
    Notched impact strength 4KJ/㎡ Elongation at break 8%

  • Material introduction

    Features: The surface is smooth and white, and can be painted. Toughness: Toughness is better.

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Material performance

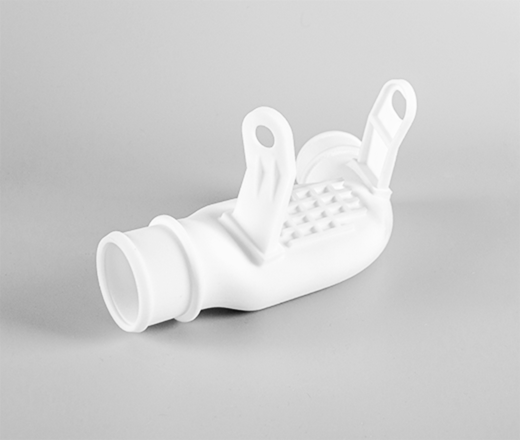

    Material name: Photosensitive resin GenL



    Color: white,



    temperature resistance: 62℃



    Accuracy: ±0.15/100mm Minimum wall thickness: 0.8mm

    Heat deflection temperature 62° Density 1.16 Dielectric strength 14.9
    Thermal expansion coefficient 95*E-6 Tensile modulus 2599-2735MPa Tensile strength  39-56MPa
    Elongation at break 13 -20% Hardness 87 Poisson's ratio 0.4-0.43
    Flexural strength 70-75MPa Impact strength 35-45J/㎡ Flexural modulus 2592-2675MPa



  • Features: The surface is smooth and gray-black. Toughness: Toughness, good strength.

    Application areas: Manufacturing of master models, conceptual models, general parts, and functional parts in the automotive, medical, consumer electronics and other industrial fields.

    Material performance

    Material introduction

    Material name: Black resin



    Color: Gray-black,



    temperature resistance: 58℃



    Accuracy: ±0.15/100mm Minimum wall thickness: 0.5mm

    Heat deflection temperature 58~69℃ Density 1.12~1.18 Dielectric strength 12.8-16.1
    Thermal expansion coefficient 90~103*E-6 Tensile modulus 2649-2731MPa Tensile strength  41-58MPa
    Elongation at break 7 -11% Hardness 79 Poisson's ratio 0.4-0.44
    Flexural strength 69- 76MPa Impact strength 29 - 34 J/㎡ Flexural modulus 2722-2792MPa



  • Features: The surface is relatively smooth, semi-transparent, and slightly layered. Toughness: The material is brittle, suitable for ordinary assembly.

    Application areas: automotive, consumer electronics, electromechanical, artwork

    Material performance

    Material introduction

    Material name: Translucent resin



    Color: colorless,



    temperature resistance: 61℃



    Accuracy: ±0.3/100mm Minimum wall thickness: 0.5mm

    Heat deflection temperature 61° Density 1.13 Stretching rate (stretching) 3%
    Stretching rate (breaking) 10% Tensile strength (tensile) 50MPa Tensile strength (break) 50MPa
    Water absorption rate 0.35% Hardness 87 Poisson's ratio 0.41
    Impact strength 25J/㎡

  • Features: The surface is grainy and gray. Toughness: Excellent corrosion resistance, high temperature resistance, and excellent creep resistance.

    Application areas: automotive, consumer electronics, electromechanical

    Material performance

    Material introduction

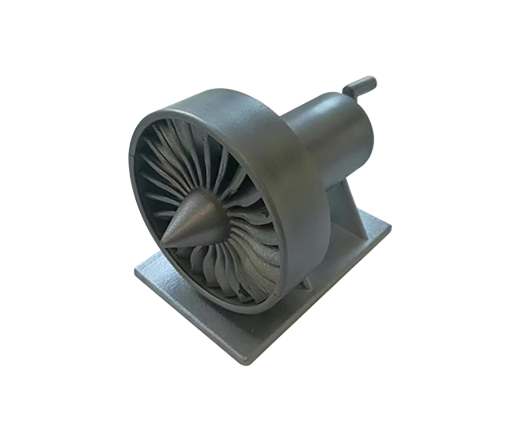

    Material name: Stainless steel A316L



    Density of parts: 90%



    temperature resistance: 1000℃



    Accuracy: ±0.3/100mm Minimum wall thickness: 0.7mm

    Molding process and state Tensile strength Yield strength Elongation after fracture
    Printed performance 637±50MPa 550±50MPa 34±5%
    Heat-treated performance 600±50MPa 410±30MPa 45±5%



  • Material introduction

    Features: The surface is grainy and gray. Toughness: Good corrosion resistance, good casting performance and wear resistance.

    Application areas: automotive, consumer electronics, electromechanical

    Material performance

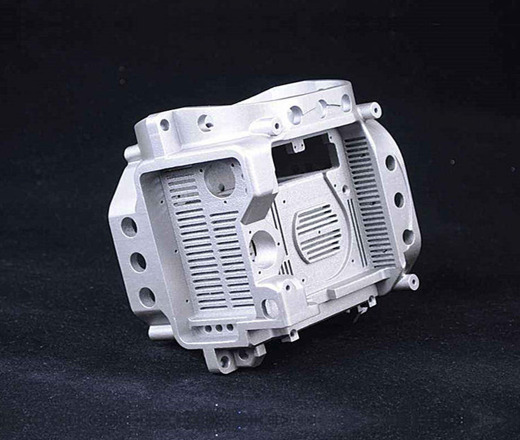

    Material name: ALSI10mg aluminum alloy



    Color: white,





    Density of parts: 90%



    temperature resistance: 1100℃



    Accuracy: ±0.3/100mm Minimum wall thickness: 0.7mm

    Molding process and state Tensile strength Yield strength Elongation after fracture
    Printed performance 430±30MPa 270±30MPa 3±1%
    Heat-treated performance 350±50MPa 240±30MPa 6±1%
